Product Description

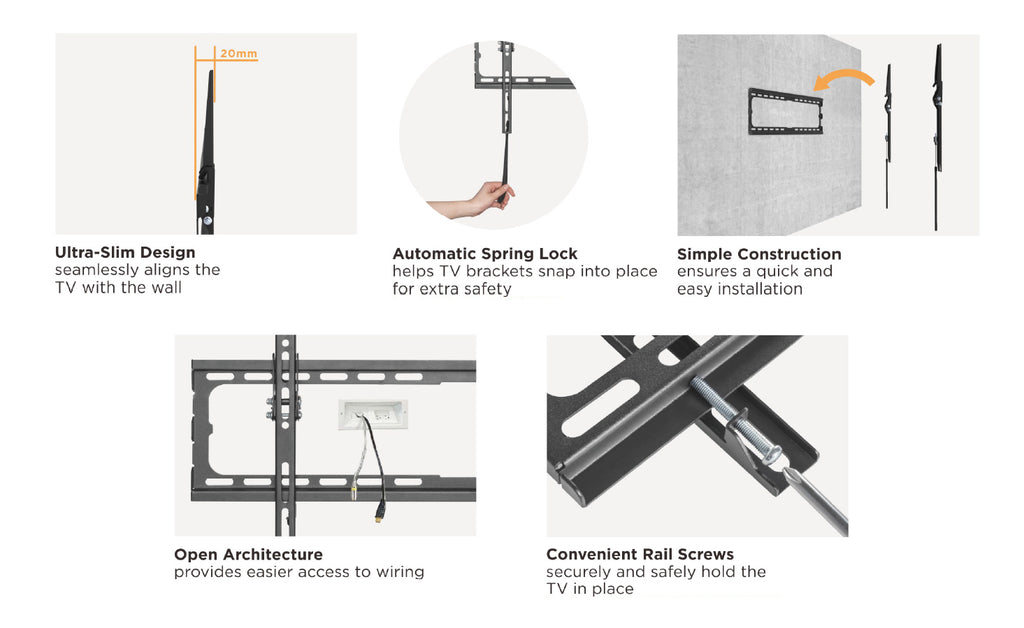

• Slim Design: Sits just 20mm from the wall for a clean, modern look

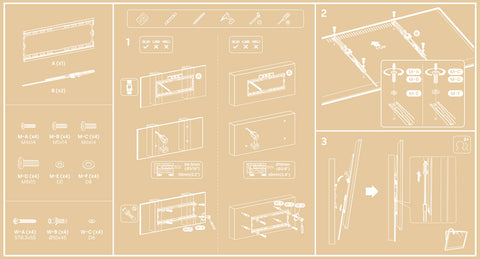

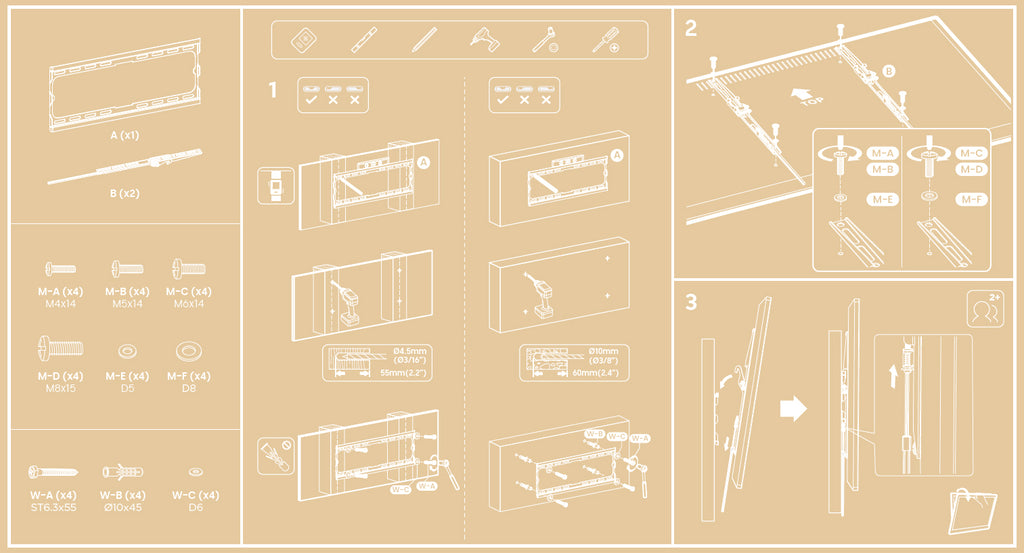

• Effortless Installation: Simple construction ensures quick and hassle-free setup
• Enhanced Accessibility: Open architecture promotes better ventilation and easy access to cables
• Optimized Viewing: Tilt functionality allows for a customized viewing angle
• Secure and Safe: Automatic spring lock mechanism ensures the TV is securely fastened

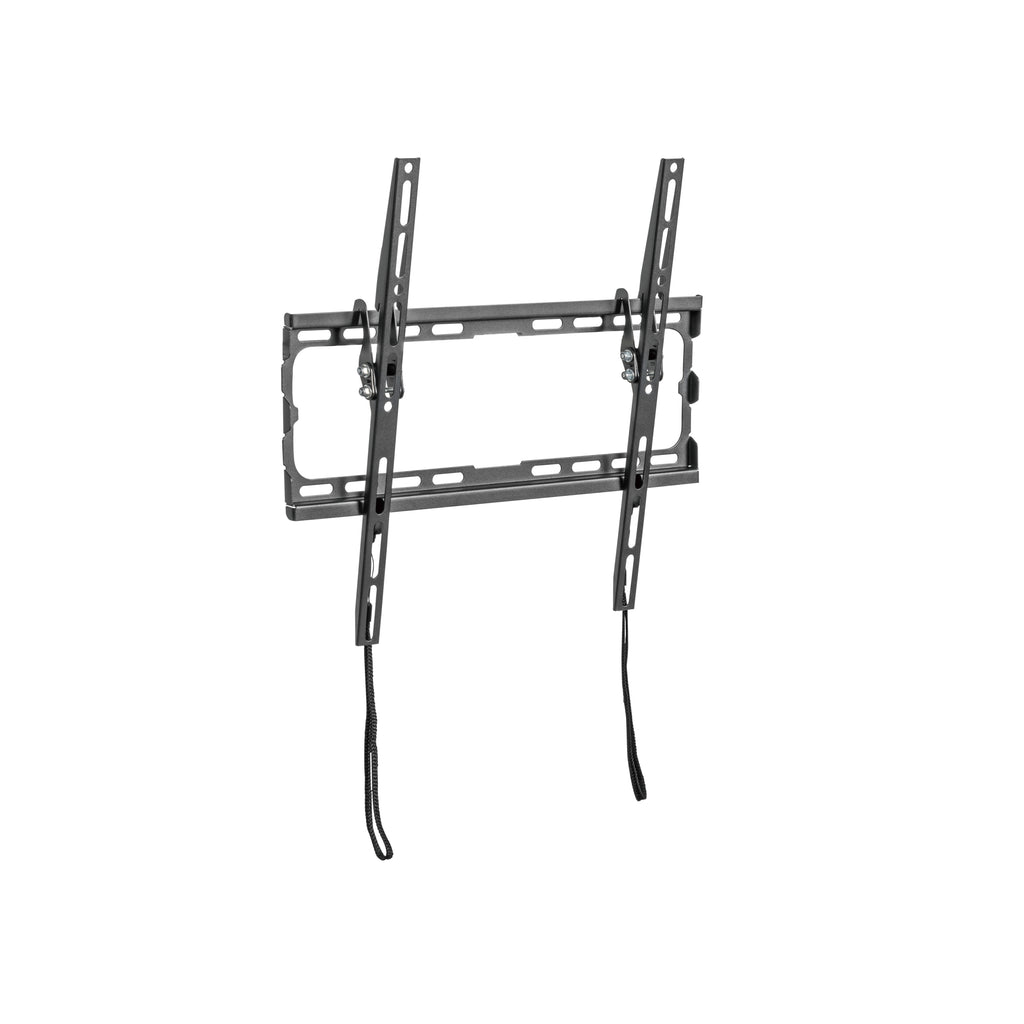

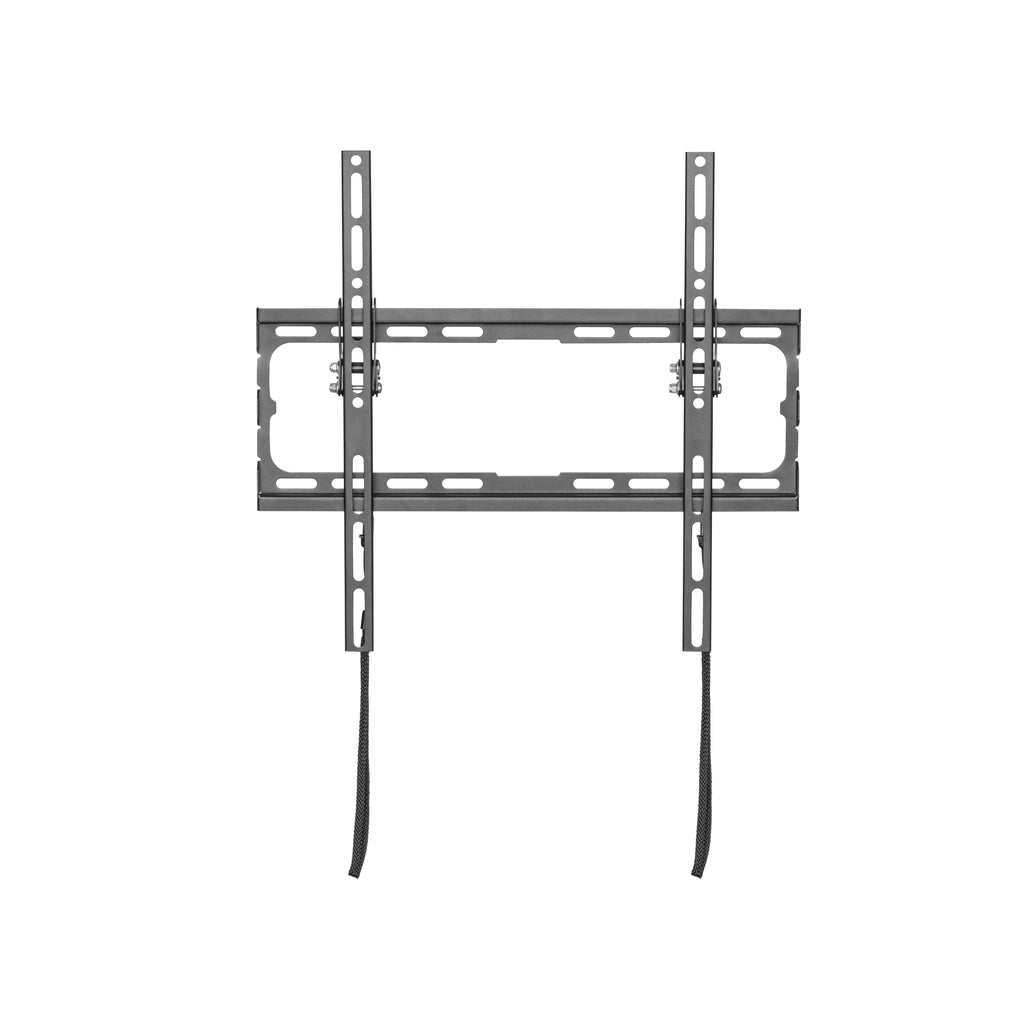

The Amer Mounts EZW4045T Low-Profile Tilt TV Wall Mount is designed to accommodate most 32"–70" flat-panel TVs, supporting a maximum weight of 45kg (99 lbs). Its ultra-slim profile positions the TV just 20mm from the wall, creating a sleek and modern appearance. With a straightforward construction, installation is quick and hassle-free. The open architecture design enhances ventilation and provides easy cable access for better organization. The tilt feature allows for an optimized viewing angle, ensuring comfort and versatility. The automatic spring lock mechanism also secures the TV brackets, offering enhanced safety. Elevate your TV experience with the reliable and stylish EZW4045T wall mount.

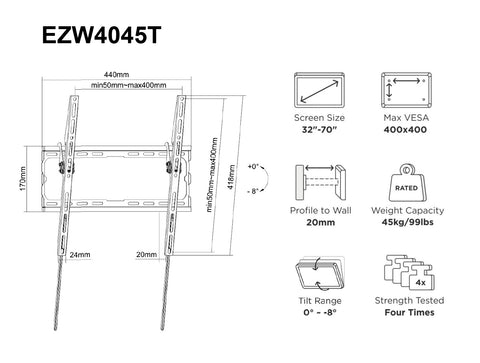

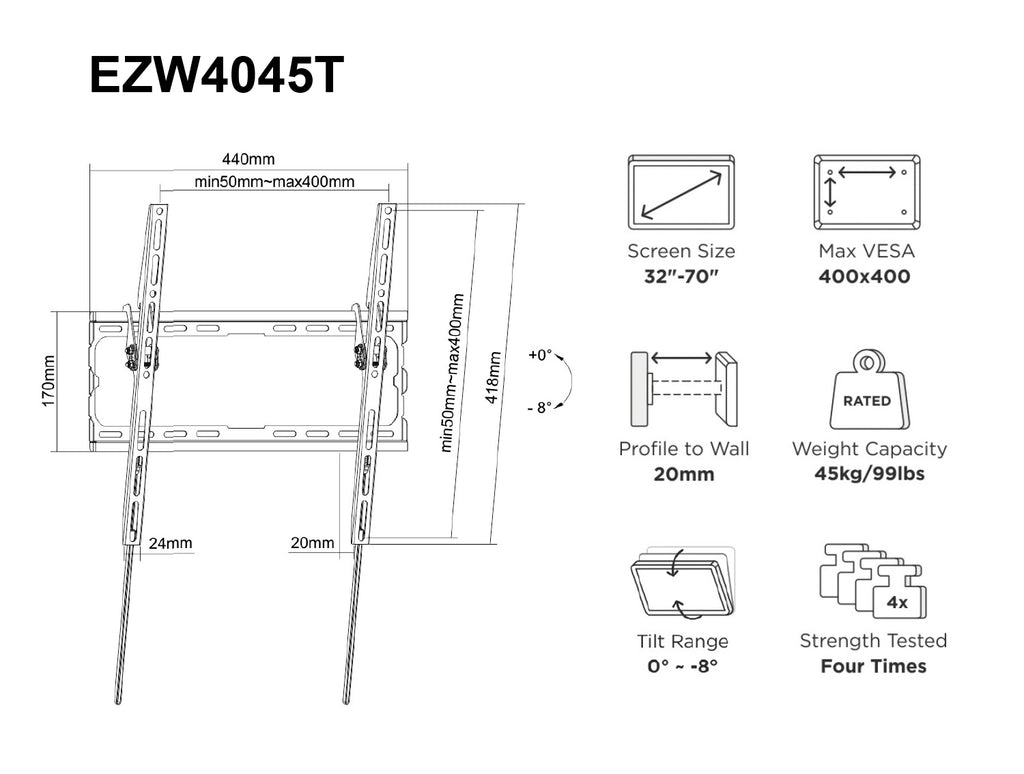

Model:
EZW4045T
Material:
Steel, Plastic
Metal Sheet Thickness:
Bracket Arm THK=1.4mm cold-rolled sheet, Wall Plate THK=1.4mm cold-rolled sheet (Bracket Arm THK=0.055" cold-rolled sheet, Wall Plate THK=0.055" cold-rolled sheet)
Surface Finish:
Powder Coating
Color:
Fine Texture Black
Dimensions:
20x440x418mm
(0.79"x17.3"x16.5")
Fit Screen Size:
32"-70"
VESA Compatible:
75x75, 100x100, 100x150, 150x100, 100x200, 200x100, 150x150, 200x200, 200x300, 300x200, 200x400, 400x200, 300x300, 300x400, 400x300, 400x400
Max. Mounting Hole:
400x400
Weight Capacity:
45kg (99lbs)
Strength Tested:
4 Times Approved
Profile:
20mm (0.79")
Tilt Range:
0~-8°
Installation:
Solid Wall, Double Stud(406mm)
Panel Type:
Detachable Panel
Wall Plate Type:
Fixed Wall Plate
UNSPSC:
45111802
